• 12 Channel EMG & EP yang optimal untuk motor dan sensory conduction test
• All in one stimulator mencakup stimulator, akuisisi channel, control dan display
• Dilengkapi dengan adjustable electro stimulating probe (pengaturan posisi stimulasi dan intensitas)
• Instant analisys dan kualitas akuisisi yang tinggi
• Pemeriksaan motorik dan sensorik dapat di lakukan bersamaan (paired stimulation)
• Dilengkapi dengan program MUNE dan Single Fibre
• Dilengkapi progam HRV, MEP dan T-Reflex
• Dilengkapi lebih dari 50 EMG dan EP teknik
• Dedicated keyboard untuk memudahkan acces ke selluruh menu pemeriksaan
• Footswitch untuk memudahkan stimulasi
| Amplifier | ||
| Number of channels | : | 12 (4x3) channel |
| Sampling rate | : | 200 Hz - 160 kHz |
| Voltage range | : | 20 μV ±50 mV |
| EP voltage range at averaging | : | 0.1±400 μV |
| Common-mode rejection | : | not less than 100 dB |
| Noise level, rms | : | not more than 0.5 μV |
| Input impedance | : | not less than 200/1000** MΩ |
| Input capacitance of amplifiers | : | not more than 25/22** pF |
| Patient leakage current | : | not more than 0.1 μA |
| Bandpass flatness in the band: | ||
| from 0.02 up to 0.05 Hz and from 5 - 10 kHz | : | from –30 up to +5% |
| from 0.05 Hz up to 5 kHz | : | from –10 up to +5% |
| High pass filter | : | 0.02 - 3000 Hz |
| Low pass filter | : | 10 Hz - 10 kHz |
| Sensitivity | : | 0.05 μV/div - 50 mV/div |
| Ratio error of sensitivity | : | within ±5% |
| Sweep speed | : | 0.1 ms/div - 2 s/div |
| Electrical Stimulator | ||
| Stimulus amplitude | : | 0.1–100 mA |
| Stimulus duration | : | 25 - 5000 μs |
| Stimulus frequency | : | 0.01 - 100 Hz |
| Interstimuli interval at paired stimulation | : | 10 - 100000 ms |
| Burst stimulation | : | |
| pulse frequency | : | 40 - 1000 Hz |
| maximal burst duration | : | 50 ms |
| Auditory Stimulator | ||
| Number of channels | : | 2 (right and left) |
| Stimulation level | : | 0 - 130 dB SPL |
| Stimulation frequency | : | 0.01-100 Hz |
| Stimulus duration | : | 50-90000 μs |
| Left/right/double-sided stimulation | : | yes |
| Visual Stimulator | ||
| Maximum brightness of LED goggles | : | (1100 ± 110) cd/m2 |
| Stimulus duration | : | 0.05-1500 ms |
| Stimulus frequency | : | 0.01-100 Hz |
| General Parameters and Characteristics | ||
| Interface | : | USB |
| Supply voltage | : | |
| Electronic unit | : | 5 V DC |
| Minimum Computer | ||
| i5, 8GB RAM, 1TB Windows 10 or Higher | ||
| Monitor 24" | ||

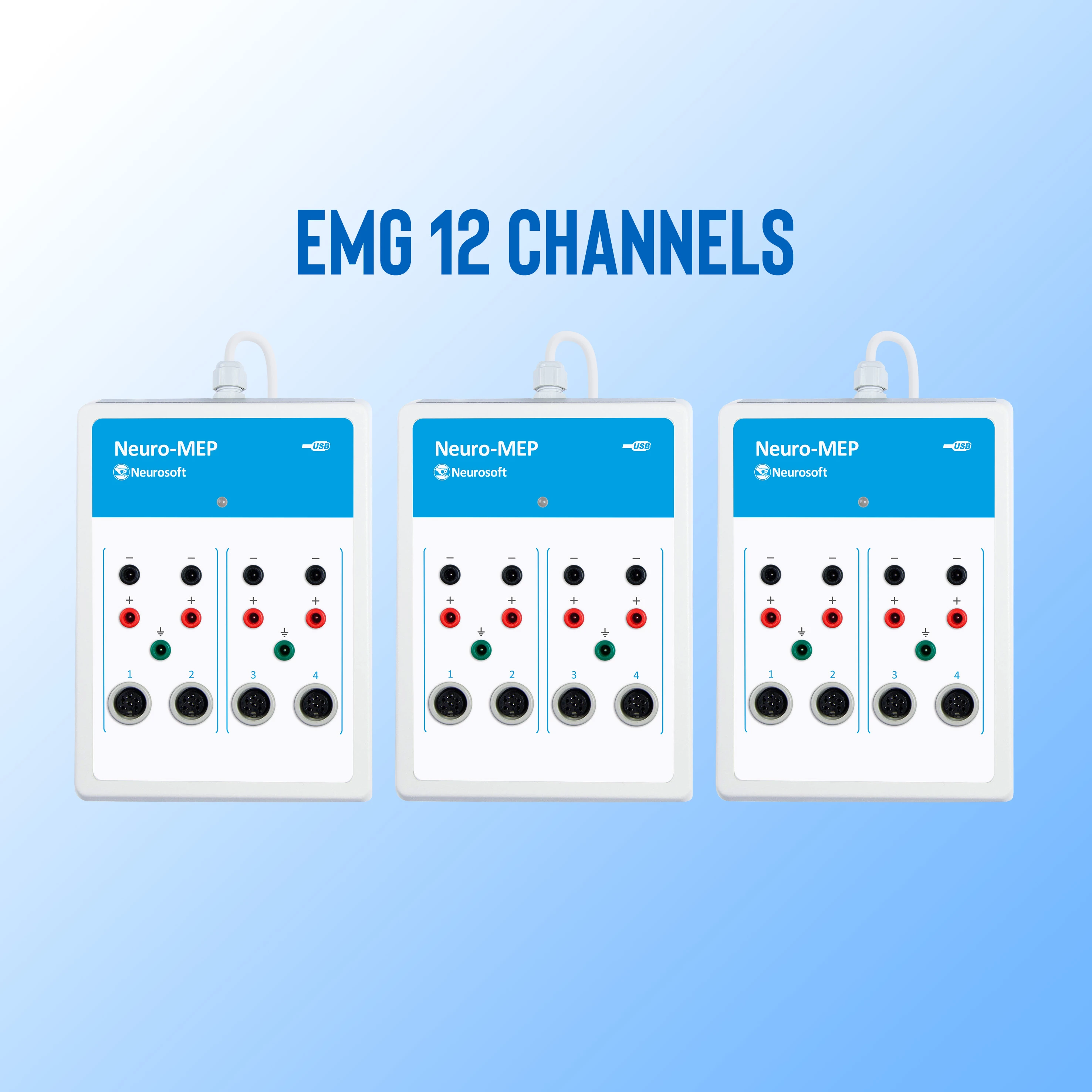

| Nama Produk : Digital EMG and EP System 12 Channels | ||
| Merk : Neurosoft - Russia | ||
| Model : Neuro MEP |
| Color Printer |
| Software |
| NCS (Nerve Conductive Sensory) |
| Motor and sensory condtion velocity, T-Reflex, F-wave, Hreflex, motor and sensory conduction collision |
| EMG |
| Spontaneous activity, interference curve, MUP, Single Fiber & macro EMG |
| Neuromuscular Junction |
| Motor unit number estimation (MUNE) |
| EP (Evoked Potentials): MEP, AEP, SSEP, VEP, and Cognitive Potential |
| Neuro-MEP amplifier unit | : | 3 |
| Reflex Hammer | : | 1 |
| Auditory-visual stimulator unit | : | 1 |
| Electrical stimulator | : | 1 |
| Holder | : | 1 |
| Holder mount | : | 1 |
| Dedicated keyboard | : | 1 |
| Patient button | : | 1 |
| USB hub with cable | : | 1 |
| Footswitch unit | : | 1 |
| USB cable | : | 2 |
| SVGA extension cable | : | 1 |
| Auditory stimulator (headphones) | : | 1 |
| Visual stimulator (LED goggles) | : | 1 |
| Electrode adhesive paste | : | 1 |
| Abrasive paste for skin preparation | : | 1 |
| Medical tape Transpore | : | 1 |
| Stimulating bar electrode | : | 1 |
| Adjustable electro stimulating probe | : | 2 |
| Gold Cup Electrode | : | 10 |
| Ring electrode (wide) with cable | : | 1 |
| Ground electrode with cable (pediatric) | : | 2 |
| Ground electrode with cable (adult) | : | 2 |
| Bar electrode (adult) | : | 2 |
| Bar electrode (pediatric) | : | 2 |
| Surface electrode with cable | : | 8 |
| Crocodile Clip | : | 4 set |
| Y-adapter | : | 8 |
| License for EMG | : | 1 |
| License for HW | : | 1 |
| License for HRV | : | 1 |
| Aksesoris Lokal: | ||
| PC | : | 1 |
| Monitor | : | 1 |
| Speaker | : | 1 |
| Printer | : | 1 |
| Trolley | : | 1 |
| UPS | : | 1 |
