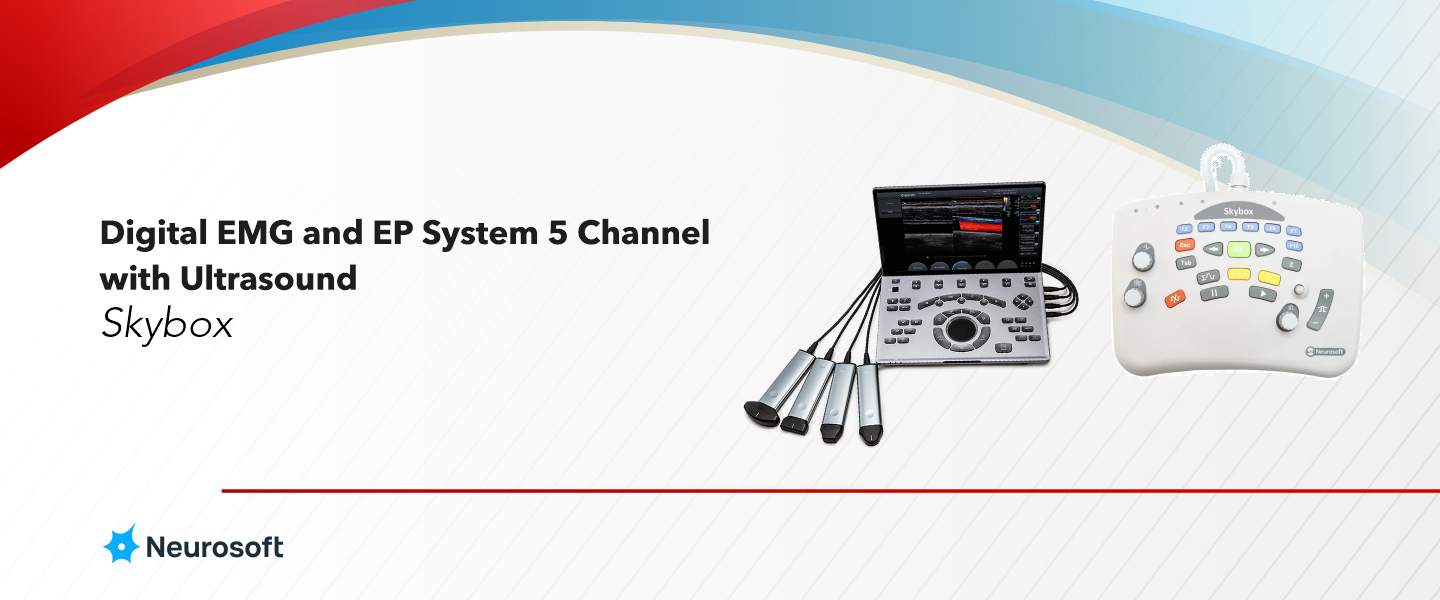

Digital EMG dan EP system 5 Channel dengan Ultrasound
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| • |
| 5 Channel EMG & EP yang optimal untuk motor dan sensory conduction test |
| All in one stimulator mencakup stimulator, akuisisi channel, control dan display |
| Dilengkapi dengan adjustable electro stimulating probe (pengaturan posisi stimulasi dan intensitas) |
| Instant analisys dan kualitas akuisisi yang tinggi |
| Pemeriksaan motorik dan sensorik dapat di lakukan bersamaan (paired stimulation) |
| Dilengkapi dengan program MUNE dan Single Fibre |
| Dilengkapi lebih dari 50 EMG dan EP teknik |
| Dedicated keyboard untuk memudahkan acces ke selluruh menu pemeriksaan |
| Footswitch untuk memudahkan stimulasi |

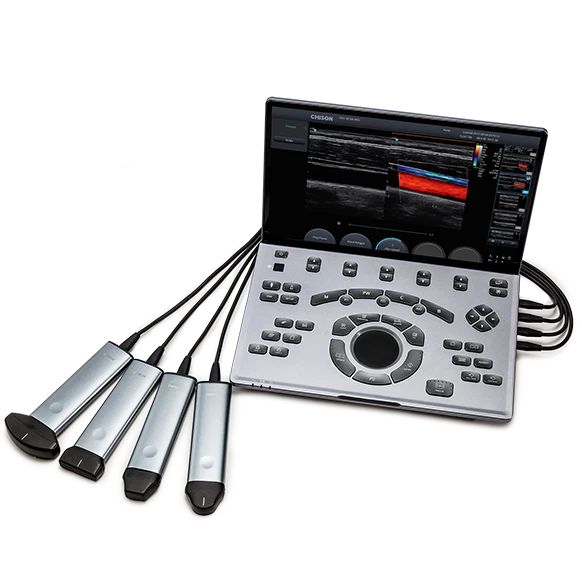

| Ultrasound with a linear Probe for application : MSK, Nerve, Small Patrs, Vascular |
| Biopotential Recording Channels | ||
| Number of channels | : | 5 |
| Input impedance | : | 2 GΩ |
| Noise level in the range from 20 Hz to 10000 Hz | : | not more than 0.5 uV rms |
| Bandpass flatness (amplitude-frequency response) within selected bandwidth of 10 Hz frequency: | ||
| within the frequency ranges 0,05-0,1 Hz and 5-18 kHz | : | from -30 up to + 5% |
| within the frequency range 0,1 Hz-5 kHz | : | from -10 up to + 5% |
| High pass filter | : | 0.01, 0.02, 0.05, 0.1, 0.2, 0.3, 0.5, 1, |
| Low pass filter | : | 10, 20, 30, 35, 50, 75, 100, 150, |
| On/off notch filter 50/60 Hz (switchable) | : | not less than 40 dB |
| Common mode rejection | : | not less than 100 dB |
| Permissible relative error of voltage measure- ment: | ||
| from 20 up to 100 | : | ±15% |
| above 0.1 up to 150 mV | : | ±5% |
| Permissible relative error of EP voltage measure | : | ±20% |
| Patient leakage current | : | not more than 0.1 |
| Sensitivity when displaying signals on a screen and at printing | : | 0.01, 0.015, 0.02, 0.025, 0.04, 0.05, |
| Permissible relative sensitivity error | : | ±5% |
| Permissible relative error of sweep speed | : | ±1% |
| Electrode impedance | : | 0.5 - 300 KΩ |
| Permissible relative deviation of electrode impedance | : | ±15% |
| Electrical Stimulator | : | |
| Number of stimulators | : | 2 |
| Number of outputs for each stimulator | : | 2 |
| Pulse amplitude | : | 0.2 -100 mA with admissible |
| Pulse duration | : | 0.01 - 5 ms with admissible relative |
| Stimulation frequency at repetitive stimulation | : | 0.1 - 200 Hz with admissible |
| Stimulation frequency at stimulation by train | : | 2-500 Hz |
| Input voltage range | : | 20 uV - 150 mV |
| Inter-pulse interval at paired stimulation | : | 0.1 - 500 ms |
| Number of stimuli at stimulation by train | : | 1 - 255 |
| Voltage range of recorded evoked potentials obtained after averaging | : | 0,1 - 400 uV |
| Admissible relative error of voltage measure- ment: | ||
| in the range from 20 uV up to 100 uV | : | ±15% |
| in the range from above 0,1 up to 150 mV | : | ±5% |
| Admissible relative error of voltage measurement of evoked potentials at the averaging of not less | : | ±20% |
| Auditory Stimulation Channels | ||
| Number of channels | : | 2 |
| Stimulation level | : | 0 - 139 dB |
| Stimulation frequency | : | 0.1 - 100 Hz with admissible |
| Permissible absolute deviation of pulse amplitude | : | ±3 dB |
| Tone stimulation: | ||
| stimulus duration | : | 1 - 100 ms |
| tone | : | 100 - 5000 Hz |
| Single pulse stimulation: | : | 0.1 100 Hz 100 |
| Left / right / double-sided stimulation | : | yes |
| Generation of contralateral noise | : | yes |
| Generation of ipsilateral noise | : | yes |
| Photic Stimulation Channels | : | |
| Number of channels | : | 2 |
| Maximal brightness of LED goggles | : | |
| Stimulus duration | : | 2 1500 ms |
| Permissible relative deviation of stimulus duration | : | |
| Stimulation frequency | : | 0.1 100 Hz |
| Permissible relative deviation of stimulation frequency | : | |
| Left / right / double-sided stimulation when using LED goggles | : | yes |
| Visual Stimulation Channels | : | |
| Reversal pattern frequency | : | 0.1-10 Hz with admissible relative |
| Permissible relative deviation of reversal pattern frequency | : | |
| Pattern size | : | 4 3, 8 6, 16 12, 32 24, 64 48 sqr. |
| Trigger Channels | : | |
| Input impedance | : | |
| Output impedance | : | |
| Stand | : | |
| Dimensions in a package | : | 1060x1300x95 mm |
| Total maximum load | : | not more than 2.0 kg |
| Castors with breaks | : | yes |
| General Parameters and Characteristics | : | |
| Power consumption (without PC and printer) | : | not more than 5 W |
| Interface | : | USB (2 slots) |
| Ingress protection | : | IP20 in compliance with EN 60529 |
| Supply voltage: | : | 5 VDC |
| Skybox electronic unit | : | 1 |
| Floor Stand | : | 1 |
| Skaybox electronic unit support | : | 1 |
| Patient button | : | 1 |
| Footswitch unit | : | 1 |
| Surface electrode with cable | : | 1 |
| Bar electrode (pediatric) | : | 1 |
| Bar electrode (adult) | : | 1 |
| Ring electrode (wide) with cable | : | 1 |
| Ground electrode with cable (pediatric) | : | 1 |
| Ground electrode with cable (adult) | : | 1 |
| Disposable concentric EMG needle electrode | : | 25 |
| Adapter for needle electrode connection | : | 1 |
| Disposable ECG electrode | : | 100 |
| Crocodile Clip | : | 3 |
| Gold CupElectrode | : | 10 |
| Y-adapter | : | 2 |
| Visual Stimulator (LED Goggles) | : | 1 |
| Auditory Stimulator | : | 1 |
| Stimulating Bar electrode (Adult) | : | 1 |
| Skate Adjustable Electro stimulating Probe | : | 1 |
| Adapter for pattern stimulator | : | 1 |
| Measuring reel | : | 1 |
| Conductive Paste | : | 3 |
| Conductive and Abrasive Paste | : | |
| Transpore medical tape | : | 1 |
| Marker pen | : | 1 |
| User manual Soft Copy | : | 1 |
| License for EP | : | 1 |
| License for EMG | : | 1 |
| License for HW | : | 1 |
| Ultrasound with Linear probe 4.5 - 18.0 MHz | : | 1 |
| Aksesoris Lokal: | ||
| PC | : | 1 |
| Printer | : | 1 |
| Trolley | : | 1 |
| UPS | : | 1 |
