For paired stimulation
Magnetic stimulator has modular construction. Paired-pulse transcranial magnetic stimulation (ppTMS) has been shown to be a useful tool to study the excitatory and inhibitory interactions in the human motor cortex. ppTMS can be performed with one or two coils.
Super powerful monophasic stimulus
Thanks to 2800 V capacitor, which is 60% more robust than our previous generation of capacitors, Neuro-MS fires more powerful monophasic stimulus. It allow obtaining good EMG response at low intensities.
Extremely low interference
Neuro-MS is used for diagnostics and research. While TMS can induce a strong electrical field, this device has a very low interference even during charge and discharge. Thus, you can use it during EEG or ERP recordings. The magnetic stimulator can operate with EMG recorders of many manufacturers (through TTL/CMOS trig-in/out sockets). However, the maximum diagnostic capabilities can be achieved, if the device is used together with Neurosoft digital neurophysiological systems.
Neuro-MEP.NET software supplied with Neurosoft neurophysiological systems, for example, Skybox, has integrated preset protocols for a wide range of TMS tests:
|
|
|
|
|
|
Big color screen and easy click wheel to control parameters
All stimulation parameters are displayed at bright and sharp color built-in screen. Easy click wheel helps to set the intensity, frequency and other parameters in a matter of seconds. Neuro-MS comes with a new set of coils that have additional controls. Right on a coil you can increase of decrease the intensity of a stimulation and deliver a stimulus.
Connection to computer via USB port
Neuro-MS, as our other TMS systems, can be used together with Neurosoft neurophysiological systems. Just connect the magnetic stimulator to the computer with installed EMG or EEG software via USB port. No additional sync cables are needed. Neurosoft produces both professional EMG/NCS and TMS machines. It means that integration between TMS and EMG can be done at a very deep level. EMG software can completely control all parameters of magnetic stimulator.
|
|
|
|
|
|
|
rTMS Stimulation Parameters |
||
| Pulse waveform | : | biphasic |
| Pulse duration range | : | 240 … 410 µs |
| Peak magnetic field | : | 2.5 T |
| Rated energy store on the main unit capacitor at the set amplitude of 100 % | : | 320 J |
| Stimulation Mode | : | Single Pulse |
| : | Train | |
| : | Burt | |
| : | Ramp | |
| : | Sweep Frequency | |
| Maximum frequency | : | 100 Hz |
| Maximum pulse frequency in burst | : | 2000 Hz |
| Coil surface temperature enabling automatic stimulation stop | : | (39 ± 2) °C |
| Power Supply | ||
| Input voltage | : | (220 ± 22)/(230 ± 23)/(240 ± 24) V |
| Input frequency | : | 50 or 60 Hz |
| Power consumption during the stimulation | : | |
| Main unit | : | ≤ 3000 VA |
| Cooling unit | : | ≤ 190 VA |
| Extra Power Supply unit | : | ≤ 3000 VA |
| Wireless Connection with PC | ||
| Interface | : | Wi-fi |
| : | IEEE 802,11 b/g/n standard | |
| General Specifications | ||
| Connection to PC | : | USB |
| Safety class | : | I |
| Applied partd | : | BF Type |
| Degree of protection provided by enclosure stimulator unit | : | IP20 |
| Operation temperature | : | + 10 to + 35 ° C |
| Relative air humidity | : | 20 to 85 % |
qEEG
| Number of Channel | : | 54 channels |
| Sampling Rate | : | 16000 Hz |
| Voltage Range | : | 1 - 12000 μV |
| Ratio error Voltage Measurement | ||
| in the range from 10 up to 50 μV | : | within ±25% |
| in the range from 50 up to 10000 μV | : | within ±7% |
| Sensitivity | : | 0.01 - 10.000.000 μV/mm |
| Ratio error of sensitivity | : | within ±5% |
| High pass filter | : | arbitary value can be set in 0.01 - 10 Hz range |
| Low pass filter | : | arbitary value can be set in 0.1 - 500 Hz range |
| Sweep Speed | : | arbitary value can be set in 1 - 10000 mm/s range |
| Ratio error sweep speed | : | within ±2% |
| Bandpass flatness in 0.5 - 60 Hz | : | from -10 up to +5% |
| Suppresion ratio of power frequency by notch filter | : | not less than 40 dB |
| CMRR | : | not less than 120 dB |
| Input noise level in 0.5 - 200 Hz range (rms) | : | not more than 1.4 μV |
| Input Impedance | : | not less than 400 MΩ |
| Patient leakage current | : | not more than 50 nA |
| Voltage measurement range | : | 0,2 - 100 mV |

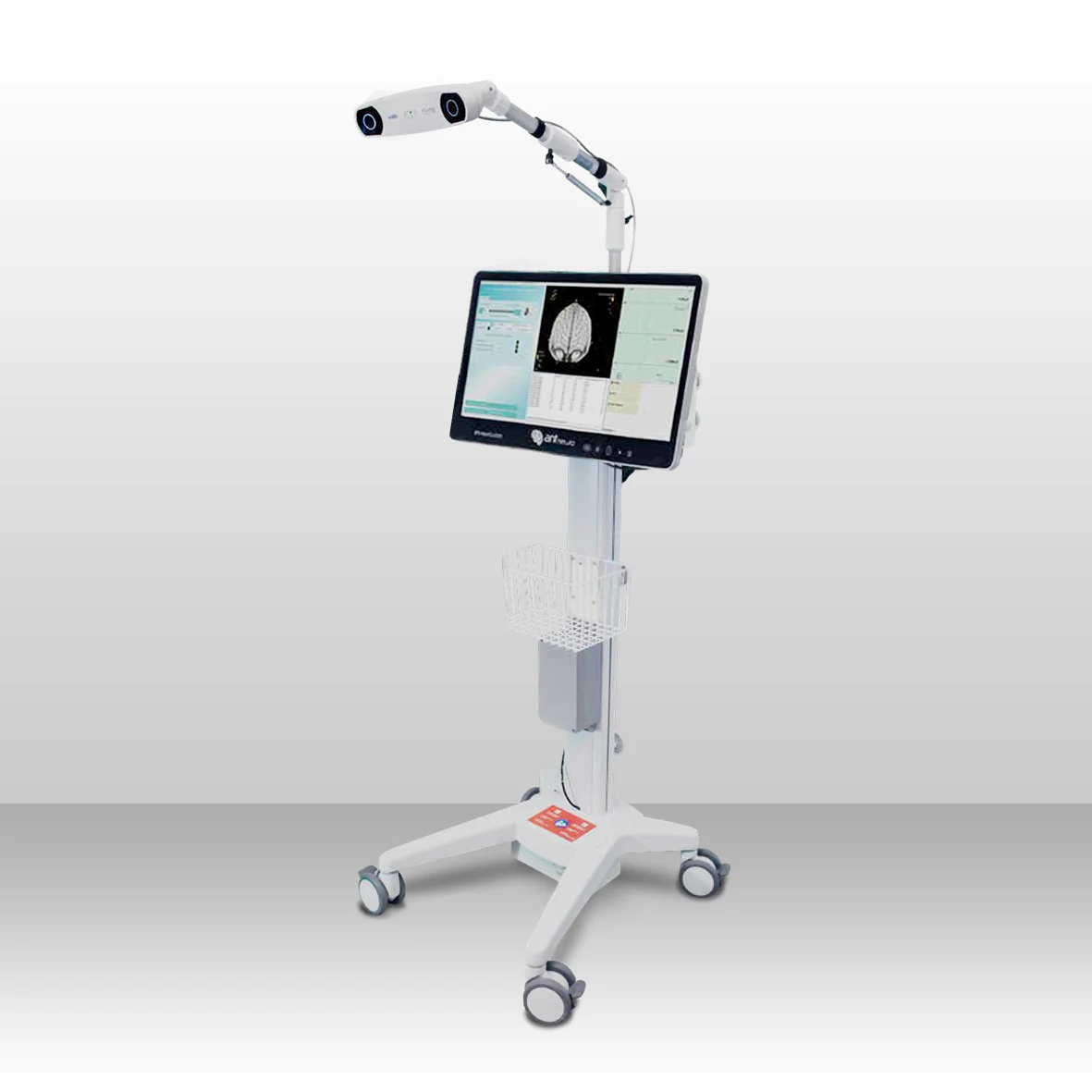

Neuronavigation System
| Medical-grade All-In-One PC with Windows OS |
| 3-Dimensional Optical Tracking System including: |
| Track the 3D position orientation of active or passive markers attached to the TMS Coil |
| Overall accuracy up to 2mm of target |
| Optical Tracking system with mobile mounting solution |
| TMS Coil Tracking tools including |
| Calibration board and coil tracker available for all standard TMS coils |
| Head reference that can attached to the patient’s head directly on skin by using self-adhesive medical patches or with clip onto a head band |
| High precision pointer tool with rounded steel tip to navigate target 3D positions |
| Dual-face coil tracker tools enable wider range of coil position and orientation |
| EMG amplifier for simultaneous EMG/MEP recording during TMS Neuronavigation including: |
| Number of channels = 2 EMG channels |
| TMS Configuration: | ||

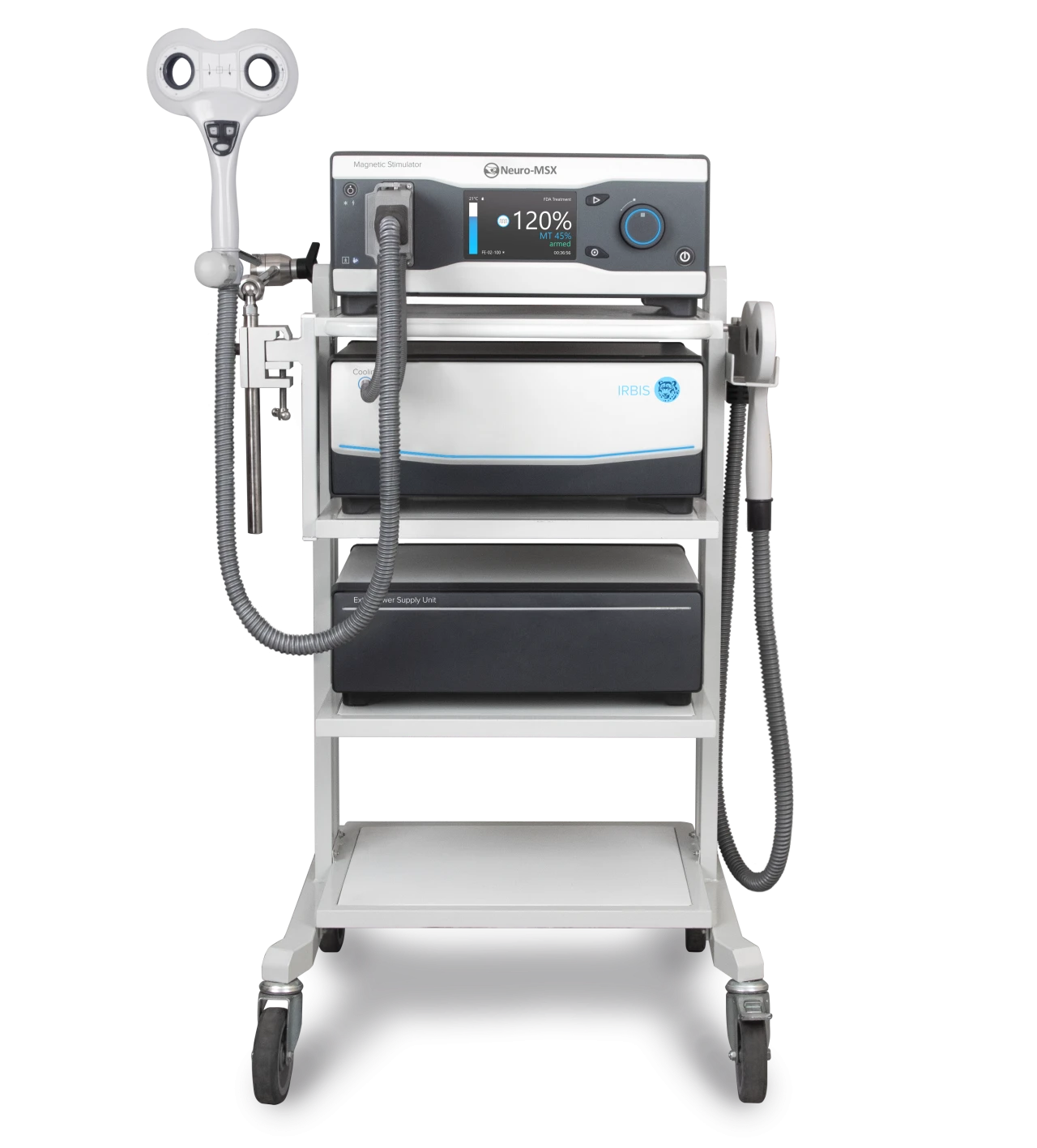

| Neuro-MSX main unit | : | 1 |
| Neuro-MSX cooling unit | : | 1 |
| Neuro-MSX Extra Power Supply Unit | : | 1 |
| Patient cap | : | 30 |
| Silicone oil canister | : | 1 |
| Angulated figure-of-eight cooled coil | : | 1 |
| Cooled ring coil | : | 1 |
| Double Cone Cooled Coil | : | 1 |
| Flexible arm for coil positioning | : | 1 |
| Coil holder (trolley/wall mounted) | : | 1 |
| Response Button | : | 1 |
| User manual «Neuro-MS.NET» soft copy | : | 1 |
| License for TMS | : | 1 |
| License for EMG | : | 1 |
| coil positioning tool | : | 1 |
| Navigation : | ||
| Neuronavigation Visor 2 System | : | 1 |
| Visor Essential accessories | : | 1 |
| Neuron-Spectrum-65 electronic unit | : | 1 |
| Measurement reels | : | 1 |
| Marker pen | : | 1 |
| Medical Tape | : | 1 |
| Stand for electronic unit | : | 1 |
| Stand mount | : | 1 |
| LED photic stimulator | : | 1 |
| Stand for LED photic stimulator | : | 1 |
| Reusable limb clamp ECG electrode | : | 4 |
| Cable for ECG channel | : | 1 |
| User manual "Neuron-Spectrum.NET" soft copy | : | 1 |
| EEG Cup electrode with cable | : | 30 |
| Electrode adhesive paste | : | 3 |
| Abrasive paste for skin preparation | : | 3 |
| Electrode system Caps | : | 1 |
| License for EEG | : | 1 |
| Equipment for Neurofeedback: | ||
| Inductive thorax and abdominal effort sensor | : | 1 |
| License for NeuroFeedback | : | 1 |
| Equipment for QEEG & Auditory Brain Stimulation: | ||
| License for BASS software | : | 1 |
| License for QEEG software | : | 1 |
| Aksesoris Lokal: | ||
| PC All in one | : | 1 |
| PC | : | 1 |
| Monitor | : | 2 |
| UPS | : | 1 |
| Printer | : | 1 |
| Treatment Chair Electric | : | 1 |
| Trolley for TMS | : | 1 |
| Trolley for EEG | : | 1 |
| IP Camera | : | 1 |
| Speaker Aktif | : | 1 |
