Multi Dop X Digital

Description

The state-of-the-art complete system

DWL Doppler technology in a fully comprehensive configuration. The system’s broad range of uses reveals itself through a consistent practice-based operating concept. A fully adjustable 22″ monitor as well as an ergonomic system cart with rotatable and extendable operation cockpit and freely programmable touchscreen remote control, make for fast and intuitive access to all functions.

The Multi-Dop X has been developed as a system designed for complex applications in detecting and differentiating emboli and supporting special functional tests, amongst other things. The system is increasingly used in science and research.

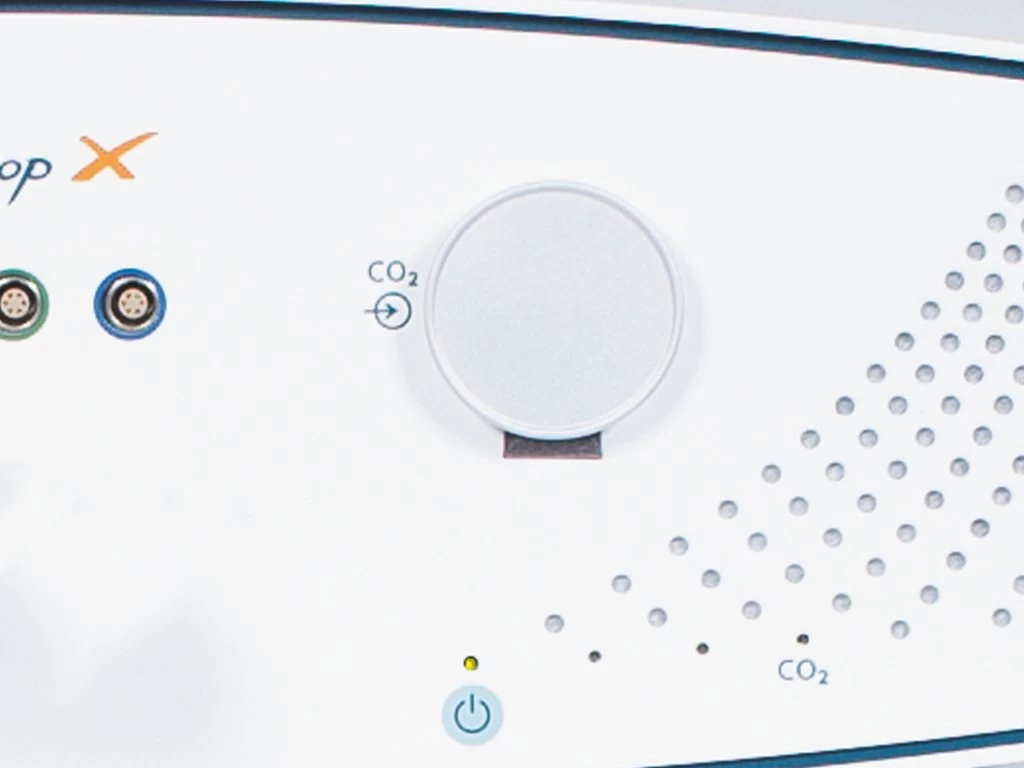

The option of a fully integrated CO2 module allows reliable statements regarding cerebral autoregulation.

Exellence


  • DWL Doppler technology with superior signal and image quality, including Doppler M-Mode
  • High-resolution LCD monitor, full rotation and tilt
  • Individually extensible via program options and upgrades
  • Optional Integrated CO2 Module
  • Optional External Color Doppler Imaging Module
  • Complete solution with individual extensibility
  • Innovative control panel with remote function





Specification

Dimension system excl. LCD LxWxH : 48 x 52 x 17 CM
Dimension system trolley LxWxH : 66 x 88 x 93 CM
Weight system : 17 KG
Weight trolley : 22 KG
Doppler frequencies (MHz)  : PW 1 / 2 / 2 + 2.52 / 16
: PW & CW 4 / 8
Doppler channels  : 02-Jan
Spectra windows : 1 - 9
Doppler M-Mode : Included
Gates : max. 8000
Audio Playback : Included
Continuous spectra recording : Included
Reportgenerator : Included
LCD Monitor HD : 55,8 cm (22”)
Resolution : 1680 x 1050
Hard disk : >= 1 TB

Storage Medium : 128 GB SSD
USB ports : 8
Ethernet : 2x / 10 / 100 / 1000 MBit
Graphic card : DVI, DP
Analog inputs  : 8
Analog outputs  : 4
System software  : Windows 10
Offline reader : Included
Remote support : Included
Drive Backup Software : Included
DWL® database  : Included
Archiving external  : USB / CD / DVD / NET
Data export : UTF-8 ASCII
Doppler raw data export : Included
Probe Included  : 2 / 4 / 8 MHz
Software Included : Routine,Bilateral Monitoring, Unilateral Monitoring, Emboli Detection



Standard Configurations

Multi-Dop X digital
Device Cart, basic
Unilateral monitoring
Bilateral monitoring
Emboli Detection
Hand held 2 MHz probe (2 meter cable)
Hand held 4 MHz probe (2 meter cable)
Hand held 8 MHz probe (2 meter cable)
DiaMon Set for monitoring probes, bilateral contains: 1 DiaMon, 2 Probes, 2 Adapter (with 2 x 2 MHz probes) , click&stay
Ultrasound gel, 1 bottle (250 ml)
Printer
UPS
