Multi Dop T Digital

Description

Dynamic. Extremely versatile.

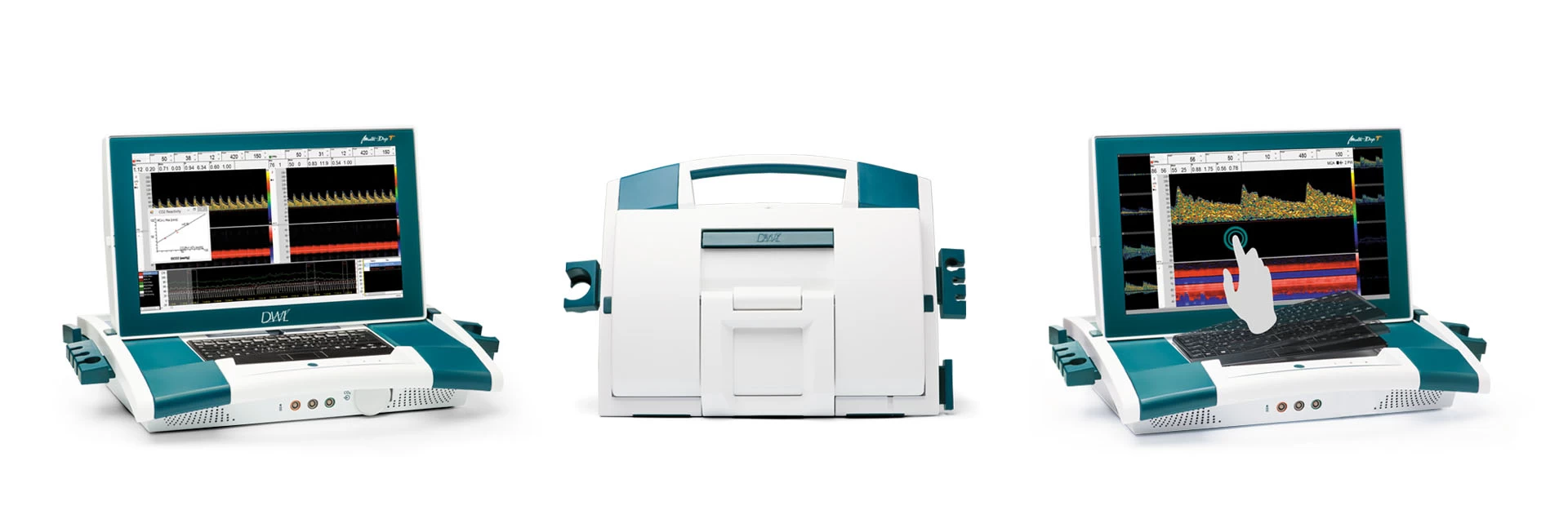

Multi-Dop T is DWL Doppler technology in an innovative, ergonomic and compact design. As a result of its intuitive operating concept, the comprehensive performance range can be used in a fast and safe manner at any time and in any situation due to the touchscreen with tablet function or the detachable wireless keyboard.

The Multi-Dop T is used for a comprehensive range of processes from routine diagnostics and continuous monitoring all the way to the detection and differentiation of emboli.

Additional software modules for functional tests, such as CO2/VMR or Evoke Flow to carry out cerebral autoregulation examinations or a fully integrated CO2 module, are optionally available.

Exellence


  • DWL® Dopplertechnology with best signal and image quality and Doppler-M-Mode
  • Measurement range to 1200 cm/s
  • Multi-Depth display with 9 Doppler spectra windows simultaneously
  • Individual extensible by program options and upgrades
  • Removable, wireless keyboard
  • Integrated touchscreen with tablet function
  • Optional with integrated CO2 module
  • Compact and portable



Specification

Dimension LxWxH : 49.8 x 40.5 x 14.5 cm
Weight  : 10.2 kg
Doppler frequencies (MHz) : PW: 1 / 2 / 2 + 2.5 1 / 16
: PW & CW: 4 / 8
Doppler channels  : 1 - 2
Spectra windows  : 1 - 9
Doppler-M-Mode : Included
Gates : max. 8000
Audio playback : Included
Continuous spectra recording : Included
Report generator : Included
Display built-in  : 43,9 cm (17.3”)
 Resolution  : 1920 x 1080 Full HD
USB remote control  : Included
Hard disk : > = 1 TB SATA
Storage medium  : 128 GB SSD
USB ports  : 4 x 2.0 4 x 3.0
Ethernet : 2x 10 / 100 / 1000 MBit
Graphic card interface : DVI, DP
Analog Inputs : 8
Analog outputs : 4
Digital Interface : Philips IntelliBridge
Operating System : Windows® 10
Offline Reader Software : Included
Remote Support  : Included
Drive backup Software : Included
DWL® database : Included
Archiving external : USB / CD / DVD / NET
Data Export : UTF-8 ASCII
Doppler raw data export : Included
Touchscreen   :  PCAP Multi-Touch
Wireless : WLAN (b, g, n, a, c)
: Bluetooth 4.1
Probes Included : 2 / 4 / 8 MHz
Software Included : Routine

Standard Configurations

Multi-Dop T digital
Hand held 2 MHz probe (2 meter cable)
Hand held 4 MHz probe (2 meter cable)
Hand held 8 MHz probe (2 meter cable)
Ultrasound gel, 1 bottle (250 ml)
Printer
UPS
