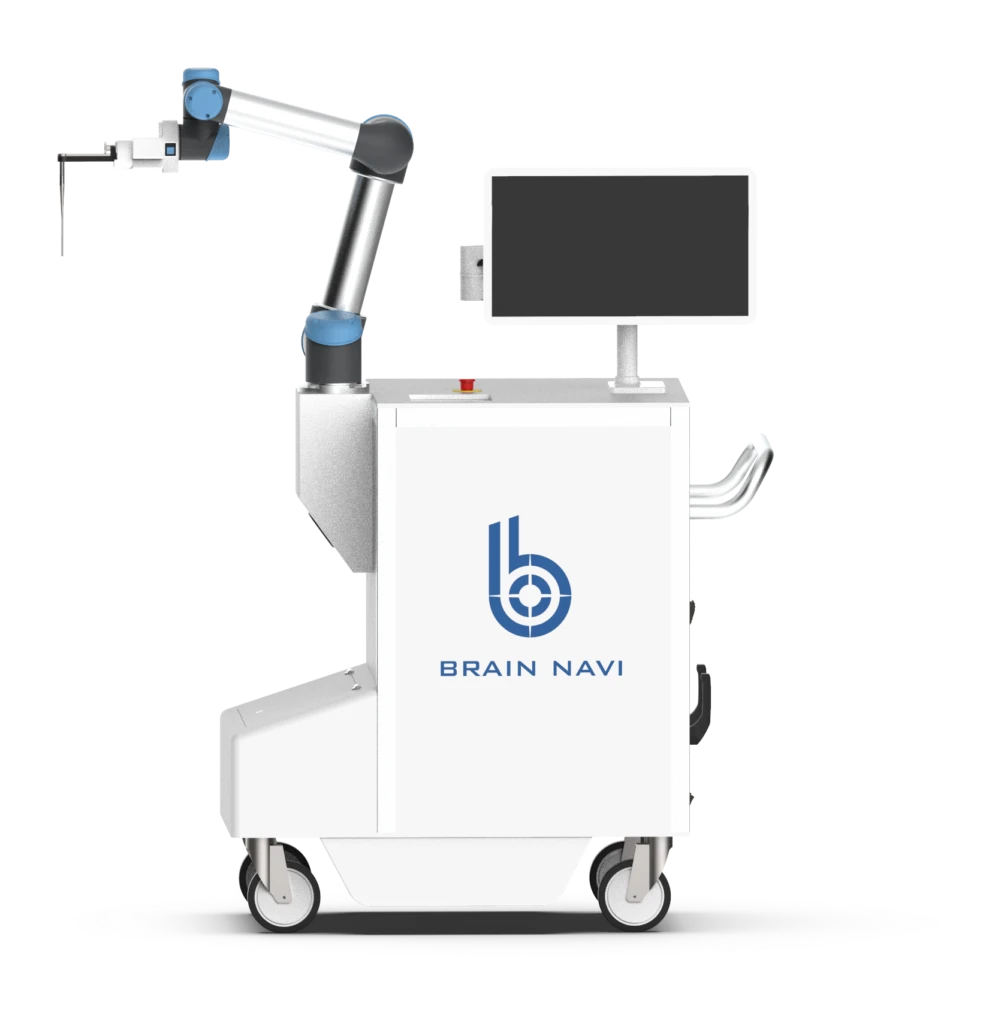

NaoTrac, Robot Navigasi Bedah Stereotaktik untuk bedah saraf, menggabungkan teknologi presisi tinggi dan pengalaman ahli bedah untuk meningkatkan akurasi dan hasil dengan menyederhanakan prosedur bedah dan meningkatkan kurva pembelajaran yang dilengkapi dengan AI, Visi Mesin, dan Bedah Berbantuan Robot. Navigasi bedah dengan registrasi non-kontak, persiapan perencanaan pra-operasi, dan pemilihan jalur bedah dengan visi 3D untuk lokasi anatomi yang tepat. Prosedur otonom yang unik memungkinkan ahli bedah untuk merencanakan dan membiarkan NaoTrac bertindak sebagai asistennya.
NaoTrac dapat membantu berbagai prosedur bedah saraf, seperti: Biopsi/Ablasi Tumor, Bedah Endoskopi, ICH, EVD, SEEG, DBS, Implan Sel.
| Intended User Population | : | Neurosurgeon |
| Intended Use Environment | : | Neurosurgical operating room |
| Power consumption | : | 100-120 Vac, 50/60Hz, 6 A |
| 220-240 Vac, 50/60Hz, 3 A | ||
| Isolation from the SUPPLY MAINS | : | Mains plug |
| Rating for Over-Current Protector | : | 10:00 AM |
| Dimension | ||
| Whole Unit: | : | Approximately L 112.2 cm x W 64.5 cm x H 214.7 cm |
| Whole Unit without Robotic Arm and Display Screen: | : | Approximately L 112.2 cm x W 64.5 cm x H 110.0 cm |
| Weight (net) | : | Approximately 260 kg max |
| Operation environmental conditions | : | • Ambient temperature range of + 10°C to + 40°C |
| • Relative humidity range of 30% to 85% | ||
| • Atmospheric pressure range of 800 hPa to 1013 hPa | ||
| Transport environmental conditions | : | • Ambient temperature range of 0°C to + 60°C |
| • Relative humidity range of 30% to 85%, including condensation | ||
| • Atmospheric pressure range of 800 hPa to 1013 hPa | ||
| Storage environmental conditions | : | • Ambient temperature range of 0°C to + 60°C |
| : | • Relative humidity range of 30% to 85%, including condensation | |
| : | • Atmospheric pressure range of 800 hPa to 1013 hPa | |
| Protection against electric shock | : | Class I |
| Protection against harmful ingress of water | : | IPX0 |
| Mode of operation | : | Continuous operation |
| APPLIED PART | : | • The treatment of parts does not fall within the definition of APPLIED PARTS, but Instrument Holder S needs to be treated as APPLIED PARTS |
| : | • Instrument Holder S extended beyond the Insulator for Force Sensor S, Face Camera and Free Drive and terminated with the tip of Standard Neurosurgical Instrument. | |
| : | • The temperature on Instrument Holder S Interface: 46.0 degree C (part to be applied part.) | |
| Release of Patient | : | Instrument Holder S Set via release of pin screw and set screw |
| Standard Surgical Platform | ||
| Nao Trac S | : | 1 Set |
| Reference Stylus Set | : | 1 pcs |
| a. Thumb Screw of Instrument Holder | : | |
| b. Reference Stylus | : | |
| Moving Detector | : | 1 |
| a. Tag S | : | 1 pcs |
| b. Tag Support Arm | : | 1 pcs |
| Foot Controller | : | 1 pcs |
| Power Supply Cord | : | 1 pcs |
| USB Mouse | : | 1 pcs |
| User Manual | : | 1 |
| a. Quick Guide | ||
| b. Guide for cleaning and steam base sterilization with instrument holder S set | ||
| Re-Use Instrument Tool | ||
| Instrument Holder S Set | : | 1 |
| including: | ||
| Instrument Holder S | : | 1 pcs |
| Catheter Adaptor | : | 1 pcs |
| Instrument Adaptor (3.0mm) | : | 1 pcs |
| Instrument Adaptor (5.0mm) | : | 1 pcs |
| Instrument Adaptor (8.0mm) | : | 1 pcs |
| SEEG Adaptor | : | 1 pcs |
| Thumb Screw of Instrument Holder | : | 1 pcs |
| Set Screw of instrument Holder | : | 1 pcs |
| Pin Screw of Instrument Adaptor | : | 6 pcs |
| The accessories are supplied non-sterile and is to be subjected to a cleaning process and sterilization prior to its use. | ||
| Single Use | ||
| 1. Surgical Equipment Drape Packs | : | 20 pcs |
| 2. Instrument Registration Platform Cover(PET) | : | 20 pcs |
