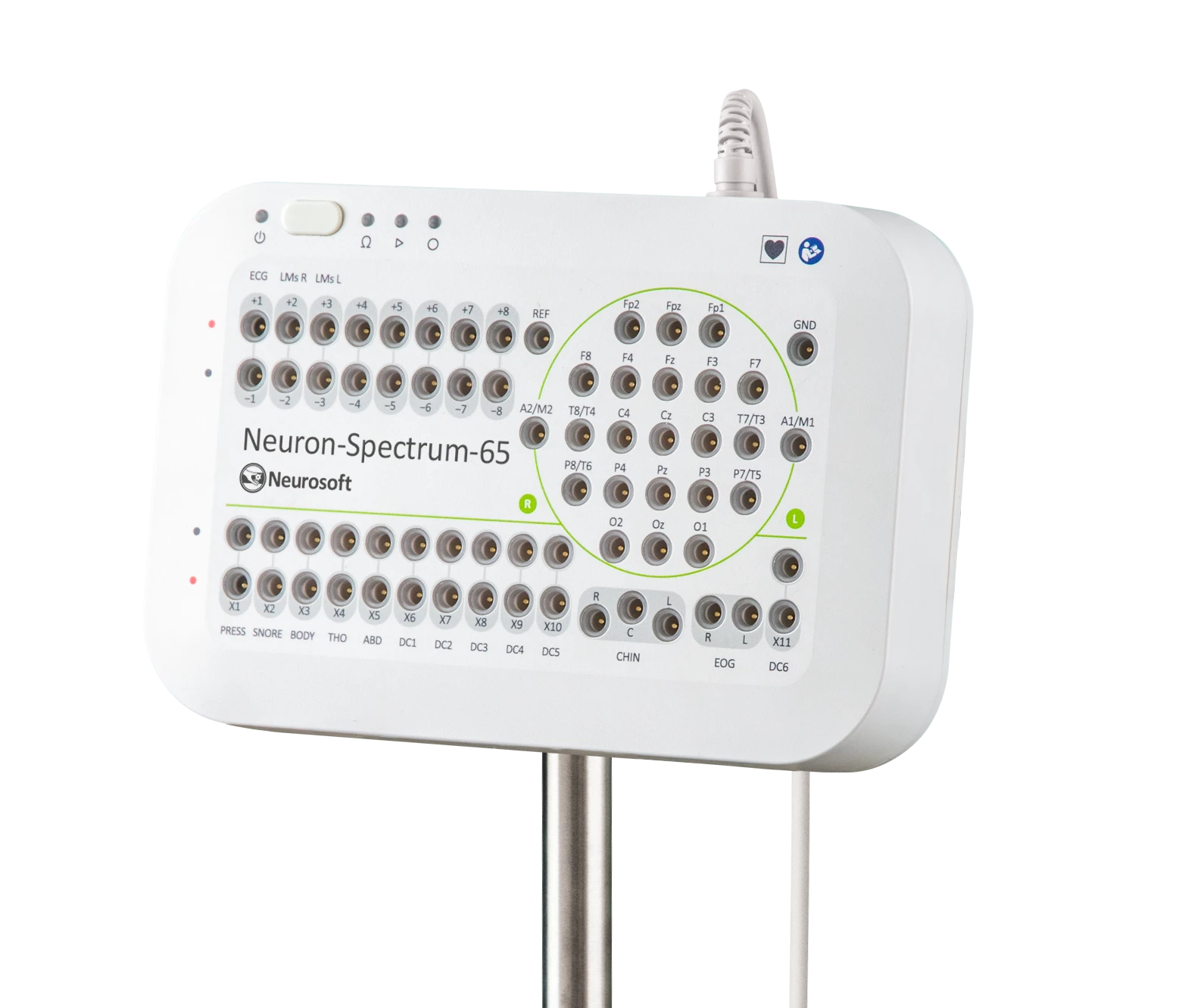

Neuron Spectrum 65 (NFB & BFB)

Description

  • QEEG with 2D & 3D brain mapping, bar charts of EEG analysis results Video EEG with synchronous Camera Full HD for LTM, aEEG & PSG Epileptic Seizure Detection
  • Search Burst / Suppresion
  • Advance analysis tools
  • Graph of spectral and coherence EEG analysis result Automatic spike detection and sharp waves Creation and editing of EEG montage
  • Trend of EEG parameters Automatic general EEG report Compatible with loreta & MatLab

Exellence

  • Neurofeedback & Biofeedback Program Recording Support biosensor SpO2 & Respiratory thorax/abdomen Diagnostic QEEG Brain Mapping with Normative Database Brain Auditory Stimulator System
  • More Game for Neurofeedback & Biofeedback from Youtube, Video, Audio,. Etc
  • The support of HL7 standard allows integrating all diagnostic neurosoft system into the information system of a healthcare facility (HIS).
  • Adaptive colour lights on the lead connecter, making EEG recording easier

Specification

Amplifier
Number of Channel                                                                                                                                               :       54 channels
Sampling Rate                                                                                                                                                         :       16 KHz
Voltage Range                                                                                                                                                         :       1 - 12000 μV
Ratio error Voltage Measurement
in the range from 10 up to 50 μV                                                                                                                       :       within ±25%
in the range from 50 up to 10000 μV                                                                                                                :       within ±7%
Sensitivity                                                                                                                                                                :       0.01 - 10.000.000 μV/mm
Ratio error of sensitivity                                                                                                                                       :       within ±5%
High pass filter                                                                                                                                                        :       arbitary value can be set in 0.01 -
Low pass filter                                                                                                                                                         :       arbitary value can be set in 0.1 -
Sweep Speed                                                                                                                                                           :       arbitary value can be set in 1 -
Ratio error sweep speed                                                                                                                                      :       within ±2%
Bandpass flatness in 0.5 - 60 Hz                                                                                                                          :       from -10 up to +5%
Suppresion ratio of power frequency by notch filter                                                                                     :       not less than 40 dB
CMRR                                                                                                                                                                        :       not less than 120 dB
Input noise level in 0.5 - 200 Hz range (rms)                                                                                                    :       not more than 1.4 μV
Input Impedance                                                                                                                                                    :       not less than 400 MΩ
Patient leakage current                                                                                                                                        :       not more than 50 nA
Voltage measurement range                                                                                                                               :       0,2 - 100 mV
Flash Simulator
Flash Rate                                                                                                                                                                :       0 - 100 Hz
Manual, default or custom flash program
General Specifications and Parameters
Interface                                                                                                                                                                  :       USB
Supply voltage
electronic unit                                                                                                                                                         :       5 V DC
desktop PC based system                                                                                                                                     :       220/230 V AC (50 Hz)
Electronic unit power consumption                                                                                                                   :       not more than 2.8 VA
Safety                                                                                                                                                                       :       CF type
Minimum Personal Computer
i7, 16GB RAM, 2 TB SSD, VGA 4 GB, Windows 11
Operating Limitations
Ambient temperature                                                                                                                                           :       10 to 35 С
Relative humidity                                                                                                                                                   :       80 % at 25 C
Atmospheric pressure                                                                                                                                           :       760±30 mmHg
Software
Export format avi, txt, rtf, xml, bmp, emf, EDF, pdf Report automatically generated EEG report
EEG Software
Single / All channel editor
Single/ Multiple channel measurement
Magnifier Mode
Automatic detection of spikes and sharp waves
Automatic artifact detection
Bandpass Filter                                                             : Delta, Theta, Alpha, Beta, or
Brain Mapping / QEEG                                                                        : 2D or 3D
Spectral Analysis                                                                              : Spectrum graph, spectrum table
Coherence Analysis
EEG Trends
Wavelet analysis

Standard Configurations

Neuron-Spectrum-65 electronic unit                                                                                                                 : 1
Stand for electronic unit                                                                                                                                       : 1
Stand mount                                                                                                                                                           : 1
Respiratory Thorax & Abdomen sensor                                                                                                            : 1
SpO2 with Reusable pulse oxymetry                                                                                                                  : 1
Reusable limb clamp ECG electrode                                                                                                                   : 4
Cable for ECG channel                                                                                                                                           : 1
User manual "Neuron-Spectrum.NET" soft copy                                                                                             : 1
EEG Cup electrode with cable                                                                                                                             : 30
Electrode adhesive paste                                                                                                                                     : 3
Abrasive paste for skin preparation                                                                                                                   : 3
Electrode system Caps
Size S                                                                                                                                                                           1
Size M                                                                                                                                                                       : 1
Size L                                                                                                                                                                         : 1
License for EEG                                                                                                                                                    : 1
Equipment for Neurofeedback : 1
License for BASS software                                                                                                                                 : 1
License for QEEG software (Neuroguide)                                                                                                       : 1

Aksesoris Lokal:
PC                                                                                                                                                                              : 1
Monitor                                                                                                                                                                    : 1
TV 42"                                                                                                                                                                       : 1
Printer                                                                                                                                                                      : 1
Headphone                                                                                                                                                              : 1
Speaker                                                                                                                                                                    : 1
Trolley                                                                                                                                                                      : 1
Desk for TV                                                                                                                                                              : 1
Comfort Chair                                                                                                                                                         : 1
UPS                                                                                                                                                                            : 1
