Neuron Spectrum 61 (CFM)

Description

  • Long-term monitoring of cerebral function and alsocardiovascular and respiratory (Optional Thorax Sensor) event, oxygen saturation (optional SpO2), etc.
  • Acquisition and asessment of aEEG and native EEG
  • aEEG trends allow reviewing long term record fragment. The trend interpretation is done automatically or manually by certain patterns. The patterns can be color - coded.
  • Automatic detection and highligthting or record artefacts, seizure event, spike, sharp wave, burst-suppression event, etc.
  • The system ensure electrode impedance indication at any record fragment both during acquisition and exam review.
  • Calculation of trends is done automatically during EEG acquisition. In case vital parameters go beyond the reference values, the software generetes text notifications that can be sent by e-mail.
  • Video monitoring of a patient with synchronoius record of video signal allows to identify record artifacts and detect patient's seizure during exam.
  • Possibillity to equip the reviewing station to follow several exams simulaneously.
  • Automatically generated report can include any trens, native trace fragments and other analysis results.

Exellence


  • 21 referential EEG channels, 1 ECG channel, 6 differential channels for EOG, ECG, EMG
  • Disk, cup and bridge electrodes or electrode caps can be applied
  • Ease of use and comprehensive software
  • Long-latency EP acquisition: visual, auditory and cognitive
  • Continuous impedance monitoring during acquisition
  • Advanced tools for mathematical analysis of EEG

Specification

Amplifier
Number of Channel : 16 channels
    11 AC Channel
    1 ECG Channel
    4 Differential Channel
    SpO2 (Optional)
    Auditory Stimulator (Optional)
Sampling Rate  : 2000 Hz
Voltage Range : 1 - 12000 μV
Ratio error Voltage Measurement :
in the range from 10 up to 50 μV  : within ±25%
in the range from 50 up to 10000 μV  : within ±7%
Sensitivity : 0.01 - 10.000.000 μV/mm
Ratio error of sensitivity  : within ±5%
High pass filter : arbitary value can be set in 0.01 - 10 Hz range
Low pass filter  : arbitary value can be set in 0.1 - 500 Hz range
Sweep Speed  : arbitary value can be set in 1 - 10000 mm/s range
Ratio error sweep speed  : within ±2%
Bandpass flatness in 0.5 - 60 Hz  : from -10 up to +5%
Suppresion ratio of power frequency by notch filter : not less than 40 dB
CMRR : not less than 120 dB
Input noise level in 0.5 - 200 Hz range (rms)  : not more than 1.4 μV
Input Impedance : not less than 400 MΩ
Patient leakage current  : not more than 50 nA
Voltage measurement range : 0,2 - 100 mV
General Specifications and Parameters
Interface  : USB
Supply voltage
electronic unit : 5 V DC
desktop PC based system  : 220/230 V AC (50 Hz)
Electronic unit power consumption  : not more than 2.8 VA
Safety  : CF type
Synchronous Review EEG & Video : Include Camera Full HD
Minimum Personal Computer
i5, 6GB RAM, 500 GB HDD, Windows 10
Color Printer &  LED Monitor
Operating Limitations
Ambient temperature  : 10 to 35 ะก
Relative humidity  : 80 % at 25 C
Atmospheric pressure  : 760±30 mmHg
Software
Export format avi, txt, rtf, xml, bmp, emf, EDF, pdf
Report automatically generated EEG report
EEG Software
Single / All channel editor
Single/ Multiple channel measurement
Magnifier Mode
Automatic detection of spikes and sharp waves
Automatic artifact detection
Bandpass Filter  : Delta, Theta, Alpha, Beta, or custom rhytem
Brain Mapping / QEEG  : 2D or 3D
Spectral Analysis  : Spectrum graph, spectrum table, spectrum map

Standard Configurations

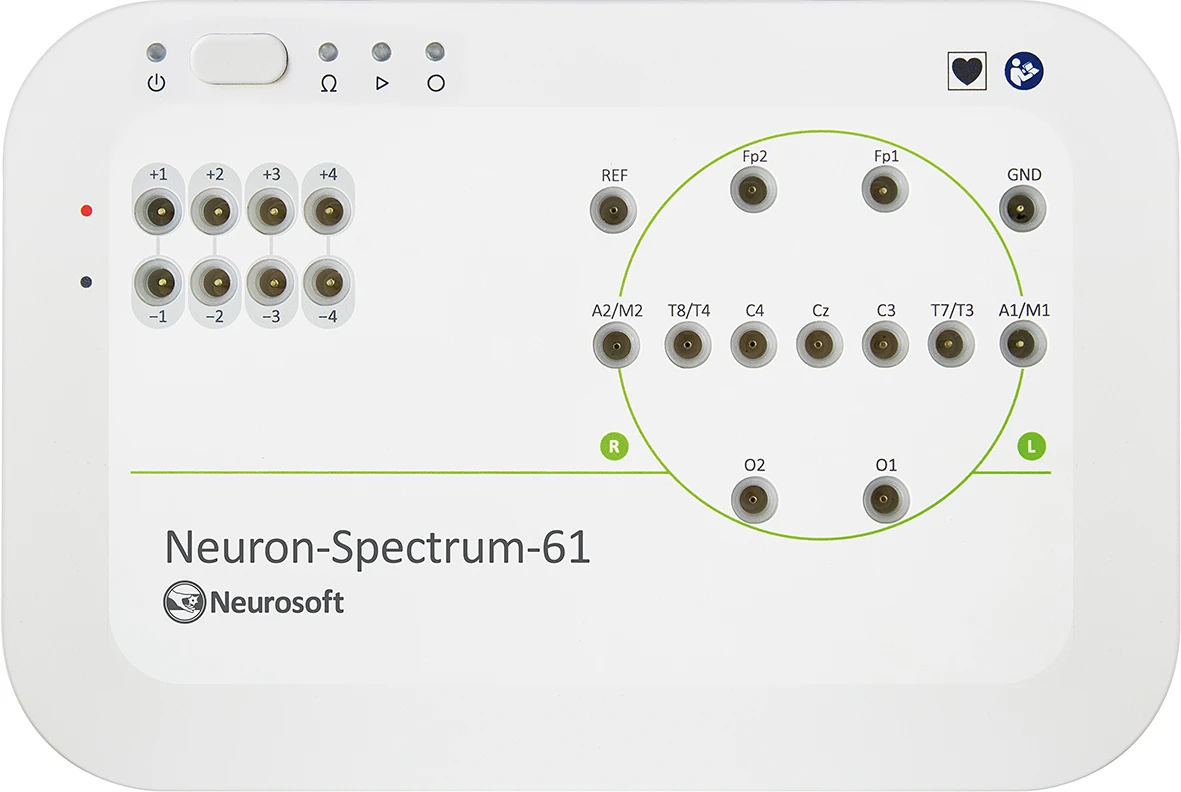

Neuron-Spectrum-61 electronic unit : 1
CFM Pod : 1
CFM / aEEG Stater Kit : 1
EEG Gold cup : 20
Electrode adhesive paste : 1
Abrasive paste for skin preparation : 1
Electrode system Head Caps : 1
User manual Soft Copy : 1
License for Video : 1
License for EEG software module : 1
License for CFM : 1

Aksesoris Lokal:
PC All in one : 1
Printer : 1
Trolley : 1
UPS : 1
Camera : 1
Speaker : 1
