Newborn hearing screening using OAE technique (TEOAE or DPOAE) is a mandatory requirement in many countries of the world, and it is performed for every newborn baby a few days after birth.

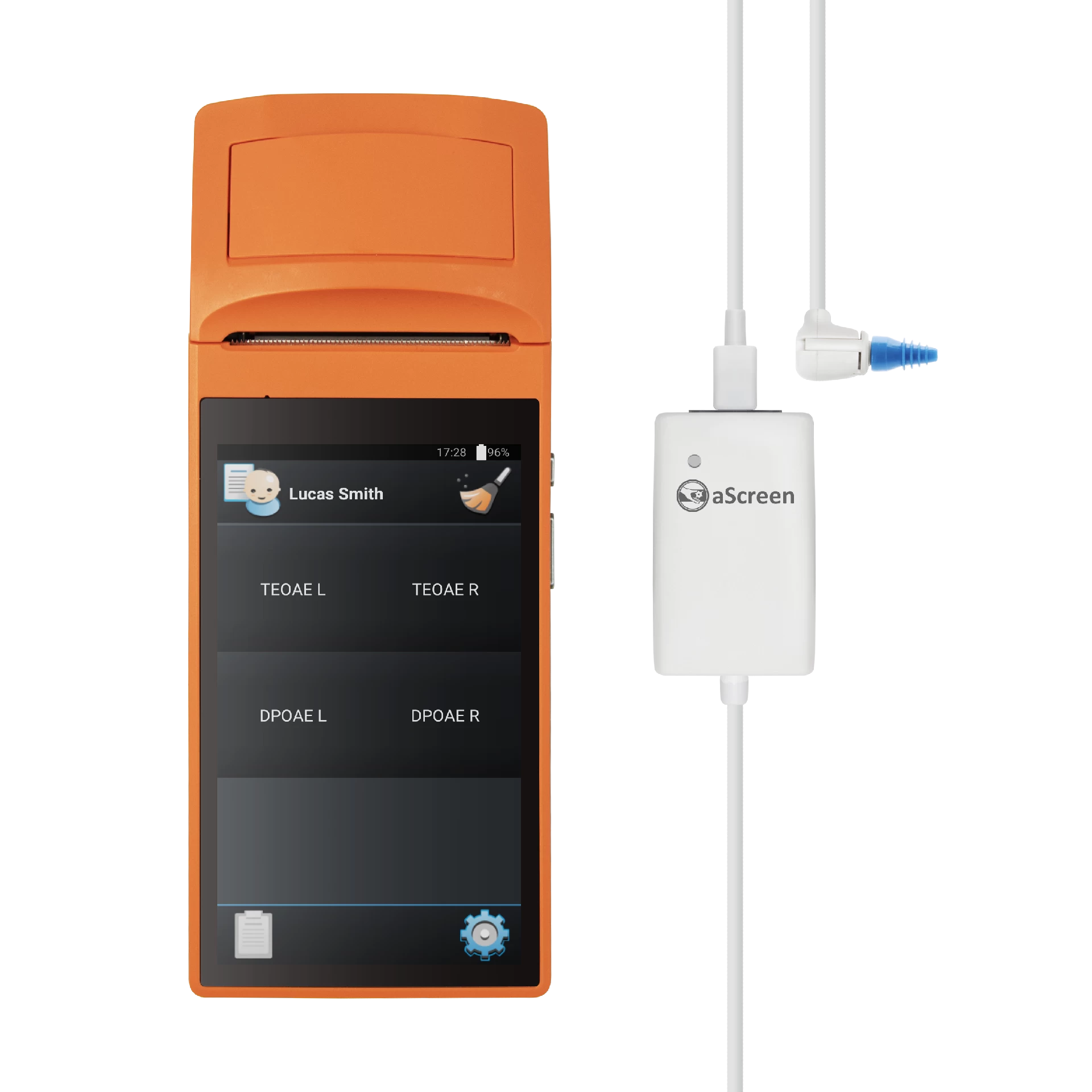

The portable aScreen system ensures fast, accurate and safe screening. The system consists of the OAE probe that can be connected to the mobile terminal using USB-C cable.
To perform the test, select the ear tip of appropriate size and attach it to the probe. Insert the probe gently into the baby’s ear canal, select the desired technique (TEOAE/DPOAE), click the Start button and get the result—PASS or REFER—in a few seconds. You can immediately print the results on the thermal printer, save them to the device memory or copy to the PC software.
aScreen comes with a set of pre-defined templates that meet the most common recording conditions (Noisy—screening, Normal—screening, Quiet—screening).
Use them or create your own to get the best results any time. Set noise level, intensity, SNR pass criteria and other parameters in the device settings.
aScreen requires no additional equipment to print the results—the mobile terminal features a built-in thermal printer for time-saving result printing.
Maximum reliability of the test results is achieved through using special noise rejection and accurate calibration technologies while thought-out user interface ensures high performance and streamlines the test.
Bluetooth interface allows exporting the data from the device to the computer with installed Neuro-Audio-Screen Manager software. This software is supplied with the device; it facilitates managing and archiving the patient database.

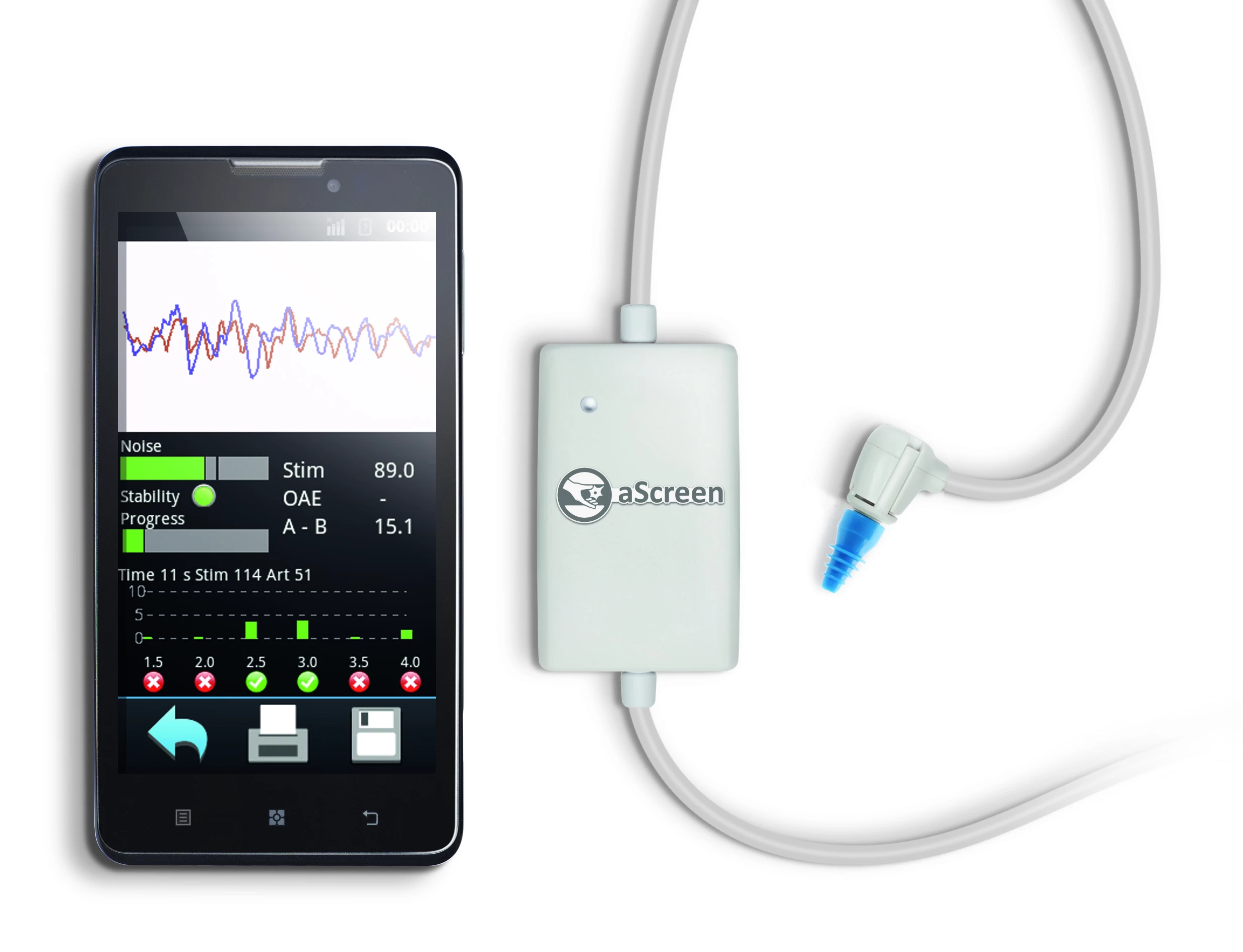

aScreen is supplied with a mobile terminal but it can also work with many Android-based smartphones and tablets with USB On-The-Go feature and USB-C connector. All you need is to choose a device with the screen size and battery capacity you are comfortable with.
| • | Portable screening system |
| • | Smallest in the world, and powerful |
| • | Hearing screening using TEOAE and DPOAE techniques |
| • | Android compatible |
| • | Easy customizable test templates |
| • | Screening OAE |
| • | Bluetooth connection to export data |
| Spesifikasi Teknis: | ||
| TEOAE Technique | ||
| Frequency range | : | from 500 to 5000 Hz |
| Stimulus intensity range | : | from 30 to 90 dB SPL |
| Permissible absolute error of stimulus intensity | : | ±3 dB |
| Stimulus spectrum flatness: | ||
| in the frequency range 1-4 kHz | : | not more than 6 dB |
| in the frequency range 0.5-5 kHz | : | not more than 15 dB |
| Input noise level in 500–5000 Hz frequency range | : | not more than 30 dB SPL |
| DPOAE Technique | ||
| Frequency range | : | from 0.5 to 12 kHz |
| Stimulus intensity range | : | from 0 up to 70 dB SPL |
| Level of harmonic distortion | : | not more than - 60 dB |
| Level of stimulus 3rd order intermodulation | not more than - 80 dB | |
| Stimulus amplitude : | ||
| in the frequency range from 0.5 to 8 kHz inclusive | : | from 0 to 70 dB |
| in the frequency range from above 8 to 12 kHz | : | from 0 to 65 dB |
| Permissible absolute error of stimulus amplitude | ||
| in the frequency range from 0.5 to 4 kHz inclusive | : | ±3 dB |
| in the frequency range from above 4 to 12 kHz | : | ±5 dB |
| General Parameters and Specifications | ||
| Automatic result analysis | : | |
| Indication of probe setting quality | : | yes |
| Device power consumption in OAE acquisition mode | : | yes |
| Interface | : | Bluetooth |
| Electronic unit power supply voltage (from smartphone) | : | 5V |
| Permissible absolute error of electronic unit power supply voltage (from smartphone | : | ±5 % |
| Protection class from electrical shock | : | with unternal power supply |
| Degrees of protection provided by enclosures | : | IP20 in compliancewith EN 60529 |
| Dimensions: Dimensions |
||
| electronic unit | : | (65×42×15) ± 1 mm |
| OAE probe | : | (31×18×12) ± 1 mm |
| OAE probe tip | : | height —(30±1) mm |
| : | Ø —(11±0.5) mm | |
| test cavity | : | height —(30±1) mm |
| : | Ø —(40±1) mm | |
| holder | : | (216×80×80) ± 5 mm |
| transportation bag | : | (430×345×165) ± 10 mm |
| lodgment | : | (403×305×108) ± 10 mm |
| Safety | : | BF |
| Weight: | ||
| electronic unit | : | not more than 0.07 kg |
| total weight with accessories (packed) (without smartphone and printer) | : | not more than 2.0 kg |
| aScreen electronic unit | : | 1 |
| OAE - 05 probe | : | 1 |
| OAE probe tip | : | 3 |
| Set of eartips | : | 1 |
| Test cavity | : | 1 |
| Superfloss Regular dental floss | : | 1 |
| Probe tip extractor | : | 1 |
| Bluetooth adapter | : | 1 |
| Technical Manual "aScreen" | : | 1 |
| Guidelines "OAE Probes OAE-02, OAE-03, OAE-04 and aScreen Probe" | : | 1 |
| License for Neuro-Audio-Screen Manager software | : | 1 |
| Aksesoris Lokal: | ||
| Smartphone Android | : | 1 |
